rear shock

Started by yambutt, February 02, 2016, 10:58:00 PM

Previous topic - Next topic

yambutt

If I raised the rear end with adjustable dog bones to about a inch or so higher do I need a longer shock, if I recall I think I shortened the dog bones, they are the soupy adjustable dog bones, to raise the rear, so how would I measure to see how much longer I need the shock to be, thanks yall.

Derek Young

No need to get a longer shock. You might enjoy a new one though, if you are running a stock shock.
1986 FJ1200 (R.I.P.)
1991 FJ1200
Nanaimo, British Columbia

yambutt

Klaus with hyperpro says I do, he's a builder for them here in the usa

jscgdunn

He is wrong or confused by your request.
92 FJ1200 2008 ZX14 Forks, wheels, 2008 cbr 600 RR swingarm
92 FJ1200 2009 R1 Swinger, Forks, Wheels, 2013 CBR 1000 Shock
90 FJ 1200 (Son # 2), Stock
89 FJ 1200 Built from parts: (Brother bought it) mostly 92 parts inc. motor
84 FJ 1100 (Son #1), 89 forks wheels, blue spots

yambutt

I thought so to, I told him that I have adjustable dog bones and raised it about an inch, he said measure the space between it and the ground while bike is on centerstand, then put old dog bones on and remeasure, and that would be the difference.

yambutt

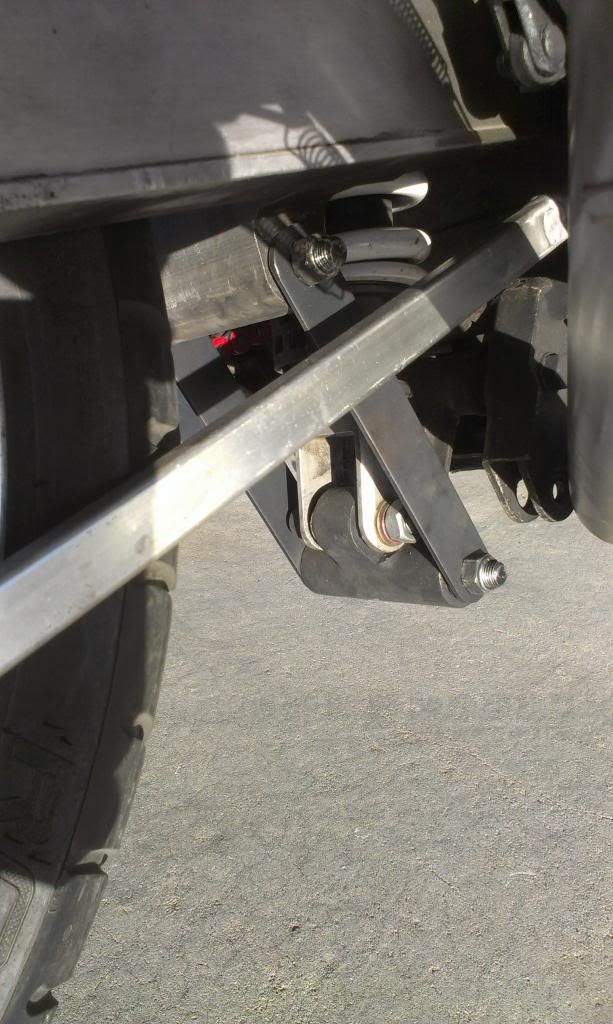

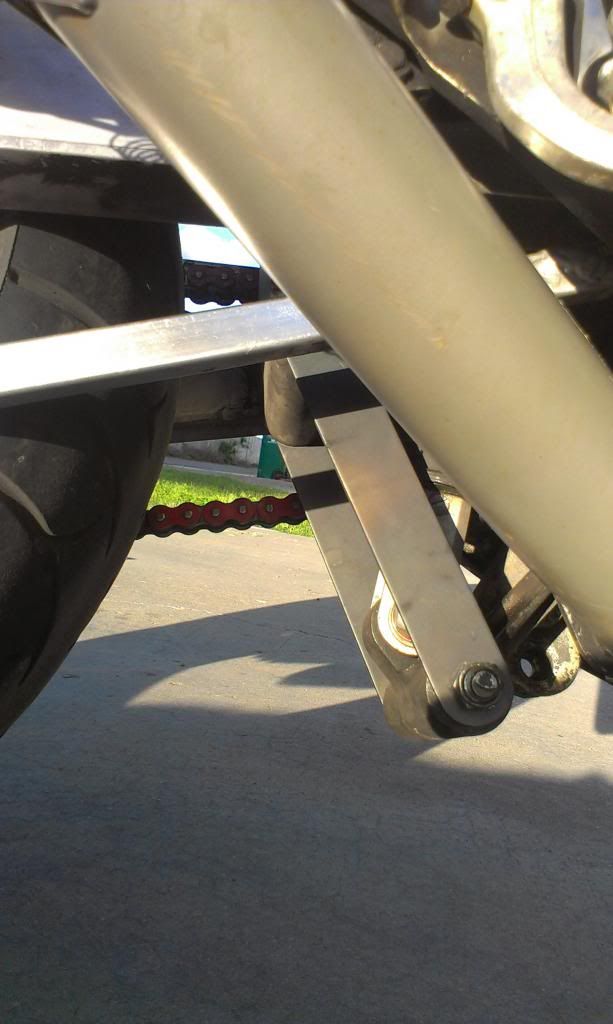

Measuring the gap from rear tire to ground

yambutt

My guess is if I kept the soupy dog bone where there at now and got a shock one inch taller wouldn't that raise the rear even further, I think he is getting confused of me wanting to put my original dog bones on with the taller shock so I would still have the height I have now, maybe thats what he's getting confused about

Pat Conlon

Quote from: yambutt on February 03, 2016, 10:05:52 AM
Klaus with hyperpro says I do, he's a builder for them here in the usa

Do you *need* a longer shock? No.

Will a longer shock raise the back end? Yes.

Between the options of 1) shorter dogbones vs 2) longer shock, which option is better?  Longer shock.

I think what Klaus is saying (and he is correct) is that the longer shock option is preferable over shorter dog bones because the longer shock keeps the swingarm linkage geometry stock as the engineers at Yamaha designed it.
When you shorten the dog bones the angles on the linkage (relay arm) change and the articulation of linkage is different which affects the compression/rebound characteristics of the shock and spring.

That said, many of us use shorter dogbones with no ill effects.

I use both options, longer shock (Penske) and adjustable dogbones.

I too have Soupy's adjustable links and I have a point of caution to warn you:
When you adjust the links, be *absolutely sure* that each side is equal in length. I mean equal down to a nat's ass. If each side is even a milimeter different this will put an uneven load on the bearings in your swing arm linkage and you will ruin them is short order. Ask me how I know.
I set the rear height where I want it using only 1 adjustable link....then take that link off the bike and up to my work bench where I set the 2nd link equal to the first link. You must be precise.
1) Free Owners Manual download: https://tinyurl.com/fmsz7hk9
2) Don't store your FJ with E10 fuel https://tinyurl.com/3cjrfct5
3) Replace your old stock rubber brake lines.
4) Important items for the '84-87 FJ's:
Safety wire: https://tinyurl.com/99zp8ufh
Fuel line: https://tinyurl.com/bdff9bf3

Firehawk068

I'm sure Klaus means well, but he is probably not familiar with the rear suspension on the FJ.

If yours has dog-bones, there is essentially TWO swing-arms on your FJ.  One is the transfer arm, that connects the bottom of the rear shock to the frame. It's relationship to the frame, and the rear shock never changes. It simply moves up and down with the compression and rebound of the shock.
Then there is the swing-arm that the wheel is attached to. It is connected to the transfer arm with the dog-bones. By shortening or lengthening these dog-bones, you are changing the relationship between the swing-arm, and the transfer arm. This will raise or lower the rear wheel in relationship to the frame. The length of the shock has nothing to do with it.

It is possible to get the same result by altering the length of the shock, but most people alter the length of the dog-bones instead.

Not all FJs have dog-bones on the rear suspension. If I'm thinking correctly, it is the '89-up models. (Possibly '88 Jap and Euro models?)
The only way to raise the rear on the early ones is to lengthen the shock.

oops, Pat beat me to it.  :good:


Early FJ



Later FJ

Alan H.
Denver, CO
'90 FJ1200

yambutt

Thank yall all so much, I think I will go with the taller shock and put the original dog bones on, that to me seems the safest way....

yambutt

Oh so if I go with taller shock and original dog bones should I then adjust chain back to 3/4 of a inch instead of the 1 1/4 I have now

racerrad8

Pat, sorry, I have to disagree and so does the company that manufactures the RPM shock for me.

The longer shock changes the relay arm linkage geometry to the shock affecting compression & rebound functions. That is why I do not offer an adjustable length shock as it changes the required valving within the shock.

Yes, the dog bone length does raise or lower the bike by changing the distance of the swing arm in relation to the relay arm which is the proper way to affect ride height changes, but it does not affect the shock valving or performance.

Just loo at the really long BMW shock that Fred installed prior to the RPM shock he has now, that is a drastic change to the relay are geometry and requires different valving to compensate.





Stock shock length is always better because the Yamaha geometry stays as designed.

Longer shocks only move the relay linkage down and out of the original geometry design...

Randy - RPM
Randy - RPM

Pat Conlon

Randy, yes there are extremes where a longer shocks can be detrimental.

I'm relaying advice I've been told by several motorcycle suspension experts.
Jim Lindemann (RIP) Ed Sorbo at Lindemann Engineering, and Donnie Jenkins at Traxxion Dynamics just to name a few.
In addition several shock manufacturers (Penske, Hagon, Ohlin, Fox) will also disagree with you.

So we know about the handling benefits of raising the back end of our bikes (I don't think there is disagreement there, correct?)
Randy, does this mean that your shock will *never* have the length adjustable feature so the folks who have the '84-87 FJ's (no dogbones) get the ability to raise the back end (like folks who enjoy the option on the '89-93 FJ's)

The Penske shocks have a 3/4" range of adjustment on the shaft of the shock....is that a really big deal?  Really?

With respect: I think the opinion of your shock manufacturer is self serving.
